WATERPROOF MIRROR CAMERA WITH LASER ALIGNMENT WIRELESS IMAGE TRANSFER (WIRELESS)

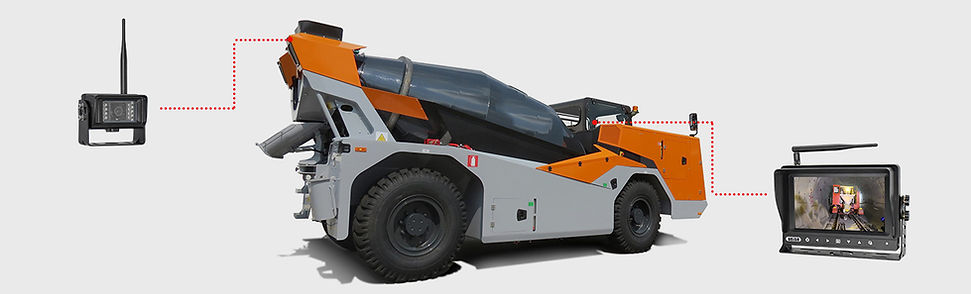

Increase warehouse safety and operator efficiency while improving product utilization and reducing the potential for rack and pallet damage with the Wireless Camera and Laser Guidance System. This system combines a wireless camera with a laser generator aimed directly at where the fork travels, allowing operators to quickly and safely load and unload at extreme heights.

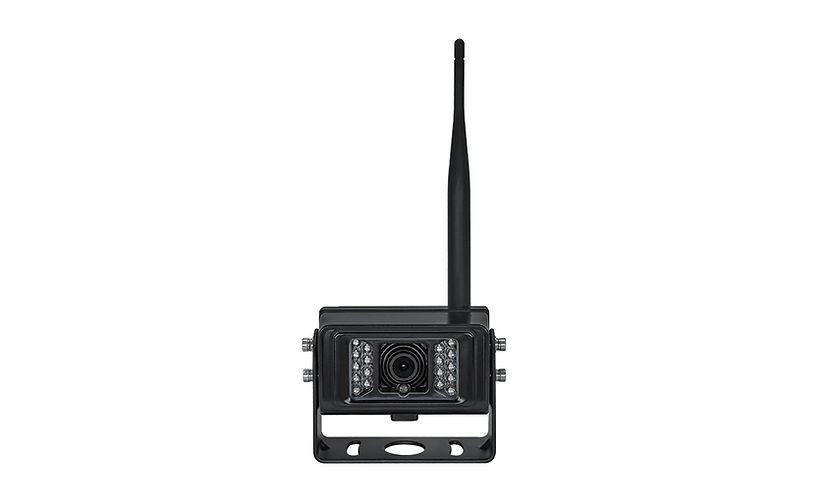

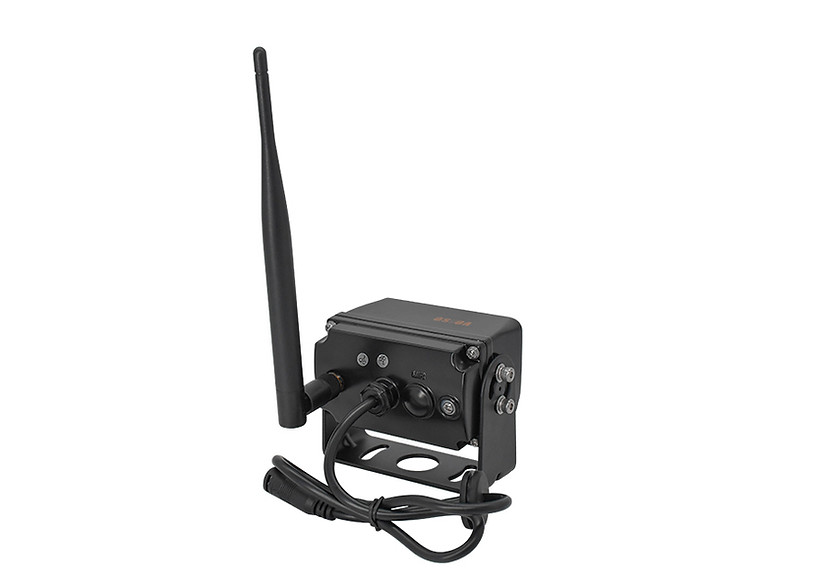

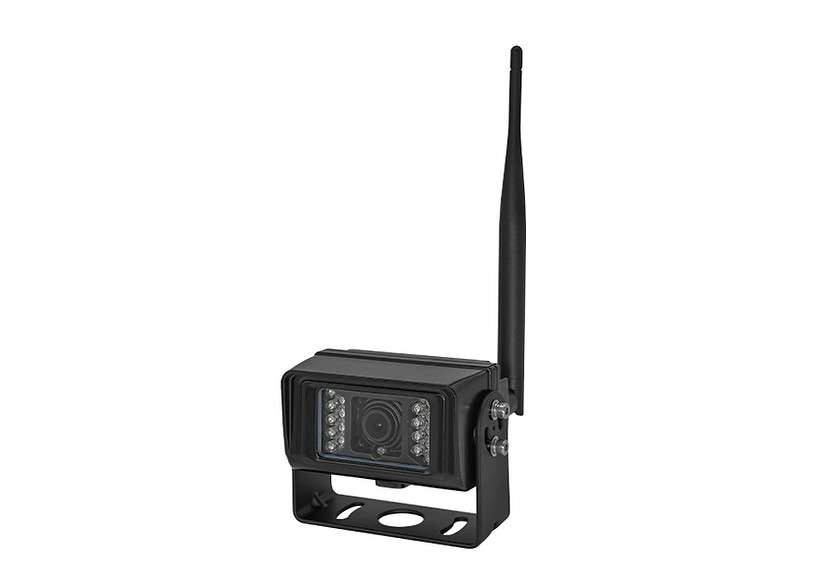

MIRROR CAMERA FEATURES

Image sensor: 1/3.7 Color DSP

Wireless transmission: Built-in 2.4G digital wireless transmitter

Transmission power: 18dBm

Shooting distance: Open area ≤ 100m

Resolution: 1080P

Effective pixels: 1920(H)X1080(V)

Viewing angle: 80°

Laser positioning: Green laser

Waterproof rating: IP69K

Working voltage: DC12V

Operating temperature: -20°C to +60°C

Storage temperature: -30°C to +70°C

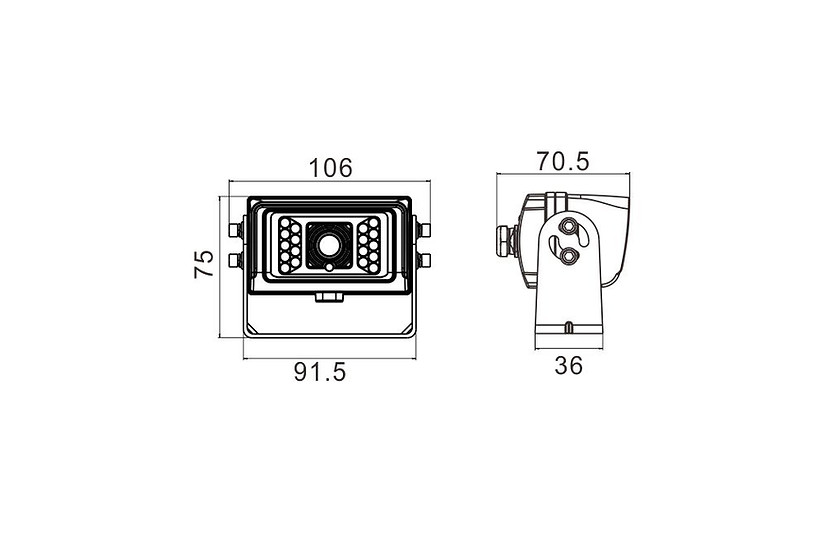

Size: 95(w) x 72(H) x 29(D) mm

Easy installation, no need to pull cables.
